Condor Cab Sim
professional-quality frequency response in a DIY-friendly circuit


This project is rated 2 out of 3 for the level of complexity.


Typical DIY speaker cabinet simulator designs are simple builds, but often fall short of a convincing frequency response due to the oversimplified designs. Our goal was to design a speaker cabinet simulator suitable for direct recording and headphone playing, capable of outperforming existing designs, but still within the reach of do-it-yourself builders.

The starting point was the published response of a single 10 inch Jensen P10R speaker. We chose to emulate a 4x10 cabinet, so low frequency response was shifted down slightly from the published curves to account for the larger cabinet and the combined cone area of four speakers.

The circuit is composed of the following functional blocks:

A frequency response graph of the Condor is shown below. For comparison, the Bulldog Cab Sim response curve is shown with a dotted red line. Note how the steeper roll-off of the Condor removes more high frequency content. When those are present, the resulting sound can seem harsh and unrealistic - especially when using a distortion pedal.

Marshall reponse curve mod

The Condor can be modified to reproduce the frequency response of the Marshall speaker simulator that is included on their amps with an XLR output (as traced by Ed Rembold, available at Aron's Selected Schematics). Substitute the following components:

Bridged-T notch filter: replace the 1n and 15n caps with 2n2 and 6n8, respectively.

High-pass filter: replace the 18k and 100k resistors with 12k and 120k.

Low-pass filters: replace the 3n9 caps with 4n7, and replace the four 22k resistors with 15k or 18k (16k is the nominal value, if you can get it; otherwise use 15k for slight extra treble, or 18k for some less fizz).

The below graph compares the original Condor frequency response with the Marshall mods.

Notch Depth Switch mod

While the above modifications will accurately reproduce the Marshall speaker simulator's response curve, so many components differ from the stock Condor that using a switch to toggle between the two is not feasible. However, a compromise is available if we focus our efforts on the Marshall notch depth. By adding and removing capacitors in parallel with the notch caps, we can produce a notch depth that approximates the notch produced by the Marshall speaker simulator. Best of all, a DPDT switch can be used to toggle between the two modes - or a 3PDT can be used to allow LED indicators for each response.

As shown in the partial schematic below, the 1n "bridge" cap is unchanged while the stock 15n cap is changed to a 6n8. A 1n2 and 8n2, both with a single-pole switch in series, are placed in parallel with those caps, respectively. By using a DPDT switch for the two single-pole switches, we can open a switch while closing the other. When the 1n2 "bridge" cap switch is open and the 8n2 switch is closed. The 6n8 and 8n2 caps are in parallel, which creates a total capacitance of 15n. Those values produce a notch as found in the stock Condor.

As the DPDT switch is activated, the 1n2 cap is added in parallel with the 1n, forming a 2n2 cap. Simultaneously, the 8n2 cap is switched out, leaving just the 6n8 cap to ground. The notch depth is now roughly half of the stock circuit, which is close to the Marshall response.

In addition to the added midrange content produced by the decreased notch depth, more treble frequencies are present and the overall output is increased. Remember, this modification does not reproduce the Marshall response, but is a good "halfway point" that adds to the usefulness of the stock Condor. Refer to the below schematic for the necessary modifications. A 3PDT switch wiring diagram is also shown, but you can ignore the middle column and use a DPDT if you don't want LED indicators.

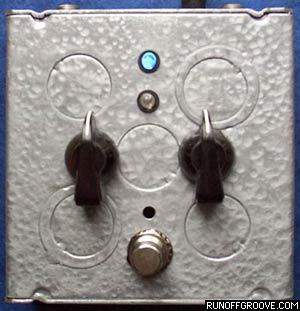

The Notch Depth Switch mod was implemented in the official Condor build, shown below. The blue LED indicates that the stock notch is active, while an amber LED is used to indicate the Marshall notch.

We've named the circuit Condor after the national bird of Chile, the home of Sebastian Tepper (a.k.a. STM), who collaborated with on this project. We are very thankful for Sebastian's incredible knowledge of filter design and enthusiastic commitment to the circuit. Without his involvement, we would not have enjoyed the same excellent results that we can now share with the DIY effects community.
